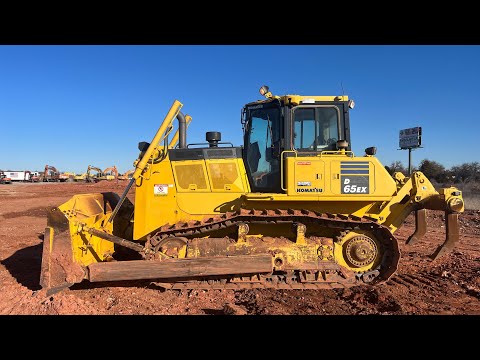

Komatsu D65 vs Cat D6 Dozer: Spec-Driven Jobsite Performance

Engine Power and Fuel Efficiency: Komatsu D65 vs Cat D6 Models

The Komatsu D65EX-18 packs a 149 hp (111 kW) engine, delivering 511 Nm of torque, while the Cat D6N LGP features a 160 hp (119 kW) engine producing 745 Nm. At first glance, Cat's extra horsepower and torque suggest more brute force, but Komatsu's engine uses advanced electronic fuel injection and turbocharging to optimize fuel consumption. This translates into roughly 7% better fuel efficiency in real-world grading applications for the D65EX-18 compared to the Cat D6N LGP, which can matter significantly over long shifts.

Operating Weight and Ground Pressure: Impact on Soil Conditions

The Komatsu D65EX-18 tips the scales at 20,700 kg with a ground pressure of 0.7 kg/cm², contrasted with the Cat D6N LGP’s 22,900 kg and 0.78 kg/cm². The lower ground pressure of the Komatsu model reduces soil compaction, a critical factor for forestry and agricultural jobsites where preserving subsoil integrity improves post-project land usability. Meanwhile, the Cat D6N’s higher weight favors pushing power in heavy material handling but risks deeper ground disturbance.

Blade Capacity and Control Systems: Precision Versus Power

The Komatsu D65EX-18 comes standard with a semi-U blade capacity of 4.03 m³, while the Cat D6N’s straight blade offers 3.8 m³ but can be equipped with a PAT blade reaching 4.24 m³. The Komatsu’s blade control integrates with its Komtrax telematics, allowing operators to monitor blade angle and pitch continuously, enhancing grading precision. The Cat D6N includes Cat Grade with 3D capabilities, which many operators find superior for complex terrain but requires additional setup and higher upfront costs.

Undercarriage and Track Systems: Durability in Harsh Environments

Komatsu’s D65 uses a sealed and lubricated track system with triple grouser shoes measuring 560 mm wide, optimized for mud and loose soil. The Cat D6N LGP features 560 mm wide shoes as well but employs a reinforced undercarriage with enhanced bushing life estimated at 25% longer lifespan under abrasive conditions. For sites with rocky terrain and frequent directional changes, the Cat’s undercarriage durability reduces maintenance downtime, directly impacting project timelines.

Operator Comfort and Visibility: Influence on Extended Shifts

While not purely a spec, operator environment affects productivity. The Komatsu D65EX-18 cabin has climate control and vibration dampening suspension seats, standard on most trim levels. Cat’s D6N LGP offers a wider cab with improved visibility through sloped hood design, reducing operator fatigue during long shifts. Though subtle, these differences influence operator efficiency over projects exceeding 10 hours daily.

Summary: Matching Specs to Jobsite Demands

Choosing between Komatsu D65 and Cat D6 models depends on specific jobsite priorities. The Komatsu D65EX-18 excels in fuel efficiency and low ground pressure, ideal for environmentally sensitive or extended grading tasks. The Cat D6N LGP offers superior torque and undercarriage durability, suited for heavy pushing and rugged terrain. Both machines balance power and precision, but their nuanced differences matter to experienced operators managing tight schedules and budgets.
