Caterpillar 374DL Specs

/5 · ratings Be the first to rate ✓ Thanks!

Caterpilla...

Overview

The Caterpillar 374DL is a hydraulic excavator listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 472.1 hp, operating weight of 156,819 lb, working depth of 31.70 ft, reach of 43.21 ft, travel speed of 2.6 mph and fuel capacity of 247.1 gal. This model can be reviewed for excavation, trenching, loading, site preparation, and fleet comparison workflows. Use the full specifications table to compare the Caterpillar 374DL against similar hydraulic excavator models by power, weight, capacity, dimensions, speed, and other technical values.

Key Specifications

Operating Weight
156,819.30
lb

Net Power
472.10
hp

Max Digging Depth
31.70
ft

Full Specifications

36 specs

Dimensions

Boom/Stick Option (Hex) 1 Boom - 7.8 m, 2.57 ft in / Stick - R4.67 m (15.4 ft in )

Bucket Digging Force - Iso 76,300 lb / 34,609 kg

Bucket Digging Force - Sae 66,881 lb / 30,337 kg

Cab Height 139.38 in / 3,540 mm

Ground Clearance 2.76 ft / 0.84 m

Max Digging Depth 31.70 ft / 9.66 m

Max Loading Height 29.50 ft / 8.99 m

Max Reach Along Ground 43.21 ft / 13.17 m

Max Vertical Wall Digging Depth 27.73 ft / 8.45 m

Maximum Reach At Ground Level 46.69 ft / 14.23 m

Shipping Height Of Unit 16.25 ft / 4.95 m

Shipping Length Of Unit 43.41 in / 1,103 mm

Tail Swing Radius 13.18 ft / 4.02 m

Track Length 231.11 in / 5,870 mm

Transport Width 11.60 ft / 3.54 m

Engine

Bore 5.40 in / 137 mm

Displacement 928 cu in / 15.2 L

Engine Model C15 ACERT

Final Drive 4

Fuel Tank 247.10 gal / 935.4 L

Hydraulic Tank 95.20 gal / 360.4 L

Net Power 476 hp / 355.0 kW

Operating Weight 156,819 lb / 71,132 kg

Stroke 6.80 in / 173 mm

Swing Drive 3.20 deg

Swing Speed 6.40 deg

Swing Torque 158,428 deg

Hydraulics

Engine Oil 17.20 gal / 65.1 L

Net Power 472 hp / 352.0 kW

Other

Cooling System 25.10 gal / 95.0 L

Undercarriage

Drawbar Pull 110,718 lb / 50,221 kg

Max Travel Speed 2.55 mph / 4.1 km/h

Number Of Carrier Rollers Per Side 3

Number Of Shoes Per Side 47

Number of Track Rollers per Side 8

Track Gauge 9.03 ft / 2.75 m

Videos 8

▶

17:52

Transporting a Brand New Caterpillar 374 Excavator: From Dealership to Papaioannou Group

▶

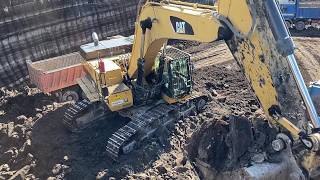

Caterpillar 374D Excavator Loading Massive Mercedes & MAN Trucks - Interkat SA

📺 Mega Machines Channel

▶

Cat 374D Hydraulic Excavator Loading Overburden On 4 Axle Trucks - Interkat SA

📺 Mega Machines Channel

▶

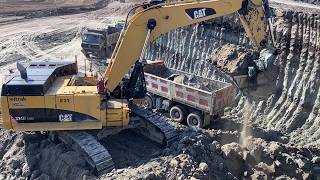

Cat 374D Hydraulic Excavator Loading Trucks With Three Passes - Interkat SA

📺 Mega Machines Channel

▶

Cat 374D Excavator Loading Overburden On 4 Axle Mercedes & MAN Trucks - Interkat SA

📺 Mega Machines Channel

▶

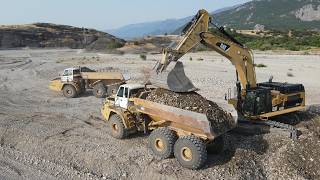

Riverbed Expansion & Slope Protection With CAT 374D, 740, 730 & D6N In Action - Interkat S.A.- Drone

📺 Mega Machines Channel

▶

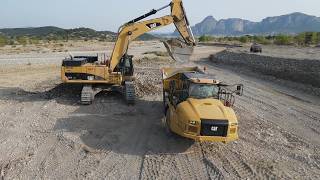

Riverbed Expansion & Flood Protection with CAT 374D & Articulated Trucks – Drone View - Interkat SA

📺 Mega Machines Channel

▶

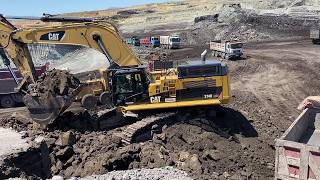

Massive Mining In Motion: CAT 374D, 385C, Graders & Truck Fleet Remove Overburden - Interkat SA

📺 Mega Machines Channel

Related Machines

Related Guides & Articles

Apr 29, 2026

Cat 374 vs Komatsu PC650: Heavy Excavator Specs Compared

Read article →

Apr 16, 2026

Hydraulic Excavator Boom Types: Solving Site-Specific Challenges

Read article →

Apr 18, 2026

Hydraulic Excavator Fuel Consumption: Operator Insights

Read article →

Frequently Asked Questions

What is the operating weight of the Caterpillar 374DL? +

The Caterpillar 374DL has an operating weight of 156,819 lb (71,132 kg). This places it in a class suited for hydraulic excavator applications where ground pressure and transport weight are key considerations.

How powerful is the Caterpillar 374DL engine? +

The Caterpillar 374DL produces 476 hp (355.0 kW) of engine power. This output is typical for its weight class and designed to handle demanding Hydraulic Excavator work cycles efficiently.

What is the maximum digging depth of the Caterpillar 374DL? +

The Caterpillar 374DL has a maximum digging depth of 31.70 ft (9.66 m). This makes it suitable for trenching, foundation work, and other excavation tasks requiring vertical reach.

What is the maximum reach of the Caterpillar 374DL? +

The Caterpillar 374DL has a maximum reach along the ground of 43.21 ft (13.17 m), allowing it to work effectively across wide areas without repositioning.

What is the travel speed of the Caterpillar 374DL? +

The Caterpillar 374DL has a maximum travel speed of 2.6 mph (4.1 km/h), enabling efficient movement between work areas on the job site.

How does the Caterpillar 374DL compare to similar Hydraulic Excavator models? +

You can compare the Caterpillar 374DL side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
