Caterpillar · Hydraulic Excavator

Caterpillar 385C FS Specs

/5  ·  ratings Be the first to rate ✓ Thanks!
⚖️ Compare
Caterpilla...
Overview
The Caterpillar 385C FS is a hydraulic excavator listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 537 hp, operating weight of 199,739 lb, capacity of 3.9 yd³, travel speed of 2.7 mph, fuel capacity of 327.6 gal and hydraulic capacity of 262.9 gal. This model can be reviewed for excavation, trenching, loading, site preparation, and fleet comparison workflows. Use the full specifications table to compare the Caterpillar 385C FS against similar hydraulic excavator models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Operating Weight
199,738.80
lb
Net Power
537
hp
Gross Power
553
hp
Reference Bucket Capacity
3.90
yd3
Full Specifications
31 specs
Dimensions
Ground Clearance 2.79 ft / 0.85 m
Height to Top of Cab 14.77 ft / 4.50 m
Length of Track on Ground 19.17 ft / 5.84 m
Removal Counterweight Clearance 5 lb / 2 kg
Tail Swing Radius 15.06 ft / 4.59 m
Width To Outside Of Tracks 11.16 ft / 3.40 m
Engine
Cooling System Fluid Capacity 26.70 gal / 101.1 L
Displacement 1,105 cu in / 18.1 L
Engine Make 2236
Engine Model C18 Acert
Engine Oil Capacity 17.20 gal / 65.1 L
Fuel Capacity 327.60 gal / 1,240.1 L
Gross Power 553 hp / 412.4 kW
Hydraulic Pump Flow Capacity 258.90 gal/min / 980.0 L/min
Hydraulic System Fluid Capacity 262.90 gal / 995.2 L
Hydraulic System Relief Valve Pressure 4,641 psi / 320.0 bar
Maximum Bucket Capacity 7.10 yd³ / 5.43 m³
Net Power 537 hp / 400.4 kW
Operating Weight 199,739 lb / 90,600 kg
Power Measured @ 1,800 rpm
Reference Bucket Capacity 3.90 yd³ / 2.98 m³
Swing Drive Fluid Capacity 5.10 gal / 19.3 L
Swing Speed 6.40 deg
Swing Torque 191.80 deg
Undercarriage
Drawbar Pull 133,087 lb / 60,367 kg
Max Travel Speed 2.74 mph / 4.4 km/h
Number Of Carrier Rollers Per Side 3
Number Of Shoes Per Side 47
Number of Track Rollers per Side 8
Shoe Size 25.60 in / 650 mm
Track Gauge 11.52 ft / 3.51 m

Videos 44

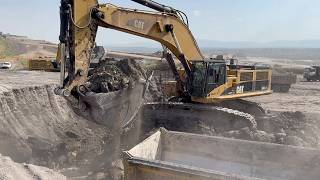

Caterpillar 385C Loading Overburden with Cat 395 & Liebherr 974 - Sotiriadis/Labrianidis Mining 4k
▶
Caterpillar 385C Loading Overburden with Cat 395 & Liebherr 974 - Sotiriadis/Labrianidis Mining 4k
📺 Mega Machines Channel

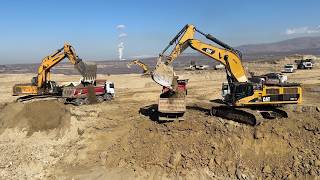

4K MINING! 3 Caterpillar 385C & Liebherr 974 Excavators Loading Non-Stop - Sotiriadis/Labrianidis
▶
4K MINING! 3 Caterpillar 385C & Liebherr 974 Excavators Loading Non-Stop - Sotiriadis/Labrianidis
📺 Mega Machines Channel

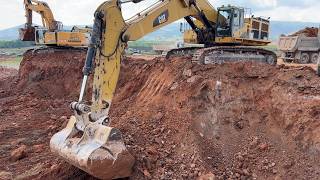

EXTREME 4K MINING ACTION! Cat 385C & Liebherr 974 Working Side by Side - Sotiriadis/Labrianidis
▶
EXTREME 4K MINING ACTION! Cat 385C & Liebherr 974 Working Side by Side - Sotiriadis/Labrianidis
📺 Mega Machines Channel

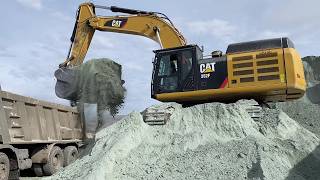

Caterpillar 352F & Caterpillar 385C Excavators Loading Trucks & Operator POV - Ascon Ltd
▶
Caterpillar 352F & Caterpillar 385C Excavators Loading Trucks & Operator POV - Ascon Ltd
📺 Mega Machines Channel

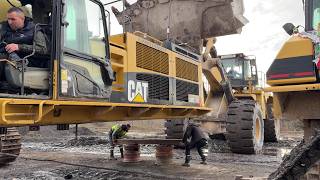

EXTREME 4K MEGA MACHINE REPAIR! Caterpillar 385C Swing Ring Replacement - Sotiriadis/Labrianidis
▶
EXTREME 4K MEGA MACHINE REPAIR! Caterpillar 385C Swing Ring Replacement - Sotiriadis/Labrianidis
📺 Mega Machines Channel

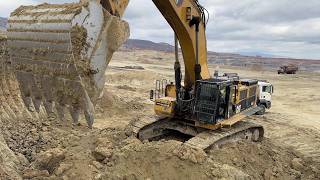

Caterpillar 385C Excavator Loading Overburden On 4 Axle Mercedes & MAN Trucks - Sotiriadis Mining 4k
▶
Caterpillar 385C Excavator Loading Overburden On 4 Axle Mercedes & MAN Trucks - Sotiriadis Mining 4k
📺 Mega Machines Channel
Terex RH30F Excavator XR80 With Xcentric Vibro Ripper & Cat 385C Excavator - Sotiriadis Mining 4k
▶
Terex RH30F Excavator XR80 With Xcentric Vibro Ripper & Cat 385C Excavator - Sotiriadis Mining 4k
📺 Mega Machines Channel
Caterpillar 385C Excavator POV | Real Mining Work Life | Mega Machines 4k - Sotiriadis/Labrianidis
▶
Caterpillar 385C Excavator POV | Real Mining Work Life | Mega Machines 4k - Sotiriadis/Labrianidis
📺 Mega Machines Channel

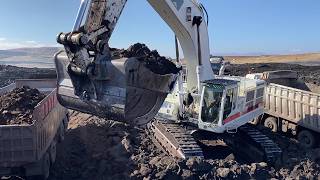

White Cat 385C Excavator Loading Coal On Mercedes & MAN Trucks | Mining Operation 4K - Interkat SA
▶
White Cat 385C Excavator Loading Coal On Mercedes & MAN Trucks | Mining Operation 4K - Interkat SA
📺 Mega Machines Channel
Caterpillar D9T & Cat 385C Transported On Site With Heavy Duty Trailer -Fasoulas Heavy Transports 4k
▶
Caterpillar D9T & Cat 385C Transported On Site With Heavy Duty Trailer -Fasoulas Heavy Transports 4k
📺 Mega Machines Channel

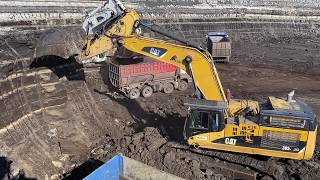

Caterpillar 365C & Caterpillar 385C Excavators Loading Coal on 4 Axle Trucks | Mining - Interkat SA
▶
Caterpillar 365C & Caterpillar 385C Excavators Loading Coal on 4 Axle Trucks | Mining - Interkat SA
📺 Mega Machines Channel

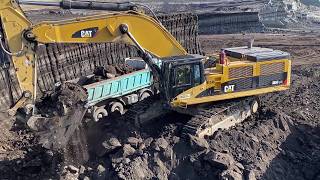

Cat 385C Hydraulic Excavator Loading Overburden On Mercedes & MAN Trucks - Interkat SA
▶
Cat 385C Hydraulic Excavator Loading Overburden On Mercedes & MAN Trucks - Interkat SA
📺 Mega Machines Channel
Cat 385C Excavator Loading Cat 775E Dumpers With Blasted Materials - Pyramis Ate
▶
Cat 385C Excavator Loading Cat 775E Dumpers With Blasted Materials - Pyramis Ate
📺 Mega Machines Channel

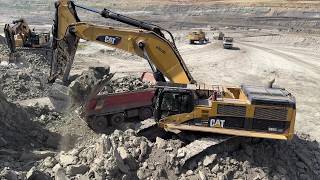

Two Cat 385C Excavators Loading Overburden On 4 Axle Trucks - Sotiriadis/Labrianidis Mining - 4k
▶
Two Cat 385C Excavators Loading Overburden On 4 Axle Trucks - Sotiriadis/Labrianidis Mining - 4k
📺 Mega Machines Channel

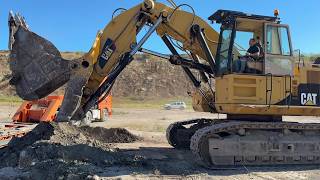

Relocating On Site The Cat 5090B Shovel & Removing The Cat 385C Bucket - Sotiriadis/Labrianidis 4k
▶
Relocating On Site The Cat 5090B Shovel & Removing The Cat 385C Bucket - Sotiriadis/Labrianidis 4k
📺 Mega Machines Channel

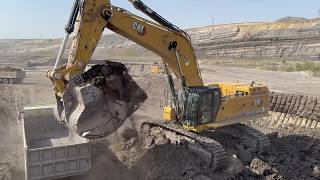

Cat 395 And Cat 385C Excavators Loading Overburden On Trucks - Sotiriadis Mining Works - 4k
▶
Cat 395 And Cat 385C Excavators Loading Overburden On Trucks - Sotiriadis Mining Works - 4k
📺 Mega Machines Channel

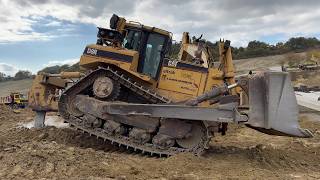

Cat D8R Dozer Ripping Hard Rock Layers In Order To Help The Cat 385C - Sotiriadis/Labrianidis - 4k
▶
Cat D8R Dozer Ripping Hard Rock Layers In Order To Help The Cat 385C - Sotiriadis/Labrianidis - 4k
📺 Mega Machines Channel
Liebherr 945, Cat 385C Excavators & Cat D9T Dozer Working Team - Sotiriadis/Labrianidis - Drone 4k
▶
Liebherr 945, Cat 385C Excavators & Cat D9T Dozer Working Team - Sotiriadis/Labrianidis - Drone 4k
📺 Mega Machines Channel

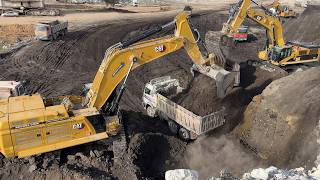

Cat 395 & Cat 385C Excavators Loading Overburden On 4 Axle Trucks - Sotiriadis/Labrianidis 4K Video
▶
Cat 395 & Cat 385C Excavators Loading Overburden On 4 Axle Trucks - Sotiriadis/Labrianidis 4K Video
📺 Mega Machines Channel

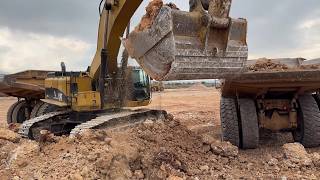

Cat 385C Excavator Loading Blasted Materials On Cat 777C & D Dumpers - Sotiriadis/Labrianidis - 4k
▶
Cat 385C Excavator Loading Blasted Materials On Cat 777C & D Dumpers - Sotiriadis/Labrianidis - 4k
📺 Mega Machines Channel

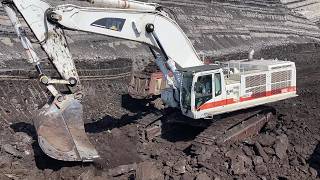

White Cat 385C Excavator Loading Coal On 4 Axle Mercedes & MAN Trucks - Interkat SA
▶
White Cat 385C Excavator Loading Coal On 4 Axle Mercedes & MAN Trucks - Interkat SA
📺 Mega Machines Channel

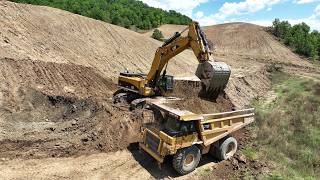

Cat 385C Excavator Loading Cat 773 & 775 Dumpers On A Highway Project - Sotiriadis/Labrianidis 4k
▶
Cat 385C Excavator Loading Cat 773 & 775 Dumpers On A Highway Project - Sotiriadis/Labrianidis 4k
📺 Mega Machines Channel

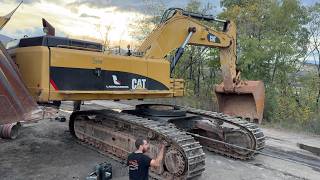

Cutting In Half The Cat 385C Excavator & Replace the Swing Ring - Labrianidis Mining Works - 4k
▶
Cutting In Half The Cat 385C Excavator & Replace the Swing Ring - Labrianidis Mining Works - 4k
📺 Mega Machines Channel
Caterpillar 385C Excavator Working On A Hard Rock Materials & Loading Trucks - Interkat SA
▶
Caterpillar 385C Excavator Working On A Hard Rock Materials & Loading Trucks - Interkat SA
📺 Mega Machines Channel

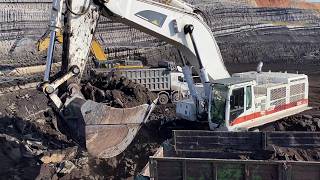

Two Caterpillar 385C & 365C Excavators Load Coal At Massive Mining Site In Perfect Syn - Interkat SA
▶
Two Caterpillar 385C & 365C Excavators Load Coal At Massive Mining Site In Perfect Syn - Interkat SA
📺 Mega Machines Channel
Caterpillar 385C Excavator Loading Overburden At Busy Mining Site - Sotiriadis/Labrianidis
▶
Caterpillar 385C Excavator Loading Overburden At Busy Mining Site - Sotiriadis/Labrianidis
📺 Mega Machines Channel

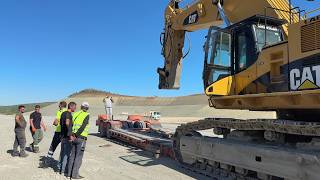

Caterpillar 385C Excavator Transport After Road Excavation Project - 4K - Sotiriadis/Labrianidis
▶
Caterpillar 385C Excavator Transport After Road Excavation Project - 4K - Sotiriadis/Labrianidis
📺 Mega Machines Channel

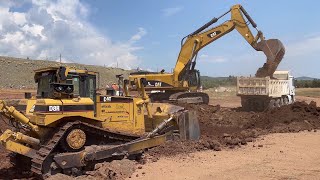

Caterpillar 385C Excavator & D8R Bulldozer At Highway Road Construction - Sotiriadis/Labrianidis
▶
Caterpillar 385C Excavator & D8R Bulldozer At Highway Road Construction - Sotiriadis/Labrianidis
📺 Mega Machines Channel

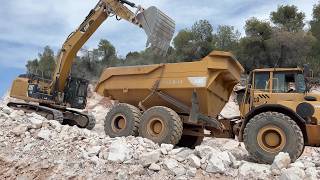

Road & Wind Farm Constr.: CAT 385C, Epiroc Breaker, CAT 336E, Tamrock Drill & Volvo A40D-Sotiriadis
▶
Road & Wind Farm Constr.: CAT 385C, Epiroc Breaker, CAT 336E, Tamrock Drill & Volvo A40D-Sotiriadis
📺 Mega Machines Channel

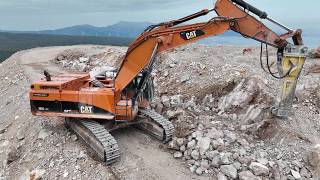

CAT 385C Excavator with Epiroc HB 1000 Breaker Prepares Wind Turbine Base at 1,000m Altitude
▶
CAT 385C Excavator with Epiroc HB 1000 Breaker Prepares Wind Turbine Base at 1,000m Altitude
📺 Mega Machines Channel
Excavators – Liebherr 984, Caterpillar 395,Cat 385C & Cat 365C in Action - Sotiriadis/Labrianidis 4k
▶
Excavators – Liebherr 984, Caterpillar 395,Cat 385C & Cat 365C in Action - Sotiriadis/Labrianidis 4k
📺 Mega Machines Channel

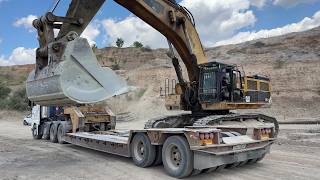

Loading & Transporting Two Caterpillar 385C Excavators On Site - Fasoulas Heavy Transports - 4K
▶
Loading & Transporting Two Caterpillar 385C Excavators On Site - Fasoulas Heavy Transports - 4K
📺 Mega Machines Channel

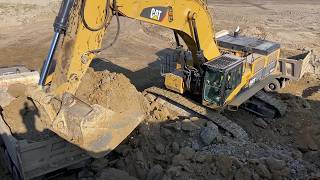

Caterpillar 385C Excavator Loading Overburden at Large Coal Mine - Sotiriadis/ Labrianidis
▶
Caterpillar 385C Excavator Loading Overburden at Large Coal Mine - Sotiriadis/ Labrianidis
📺 Mega Machines Channel

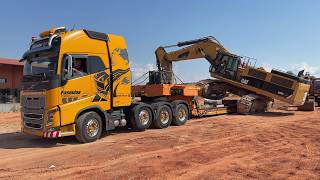

Transporting the Mighty CAT 385C Excavator with Volvo FH16 750 & Goldhofer Trailer – Fasoulas Team
▶
Transporting the Mighty CAT 385C Excavator with Volvo FH16 750 & Goldhofer Trailer – Fasoulas Team
📺 Mega Machines Channel

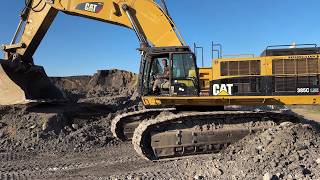

Caterpillar 385C & Liebherr 974 Excavators Relocated Inside Large Mining Site
▶
Caterpillar 385C & Liebherr 974 Excavators Relocated Inside Large Mining Site
📺 Mega Machines Channel

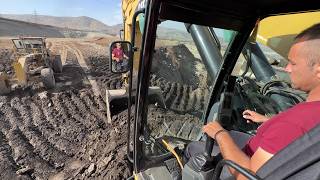

In the Cabin: Caterpillar 385C Excavator Loading Overburden - Operator View - Labrianidis Mining 4K
▶
In the Cabin: Caterpillar 385C Excavator Loading Overburden - Operator View - Labrianidis Mining 4K
📺 Mega Machines Channel
Massive Excavators In Action: Liebherr 984, CAT 385C & Volvo EC700C - Sotiriadis/Labrianidis 4k
▶
Massive Excavators In Action: Liebherr 984, CAT 385C & Volvo EC700C - Sotiriadis/Labrianidis 4k
📺 Mega Machines Channel

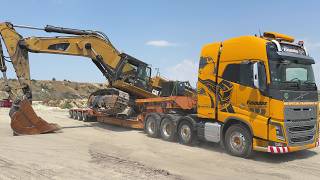

Heavy Haul: Volvo FH16 750 Transports Caterpillar 385C Through Narrow Roads - Fasoulas Transports 4k
▶
Heavy Haul: Volvo FH16 750 Transports Caterpillar 385C Through Narrow Roads - Fasoulas Transports 4k
📺 Mega Machines Channel

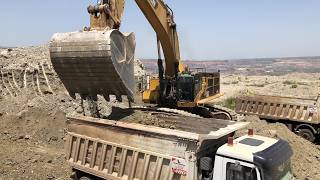

Cat 385C Excavator Loads Gravel On Mercedes & MAN Trucks | Heavy Machinery - Labrianidis Mining
▶
Cat 385C Excavator Loads Gravel On Mercedes & MAN Trucks | Heavy Machinery - Labrianidis Mining
📺 Mega Machines Channel

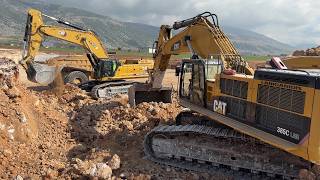

Massive Earthworks : Caterpillar 385C & 395 Load 777C & 777D Dumpers (4K) - Sotiriadis/Labrianidis
▶
Massive Earthworks : Caterpillar 385C & 395 Load 777C & 777D Dumpers (4K) - Sotiriadis/Labrianidis
📺 Mega Machines Channel

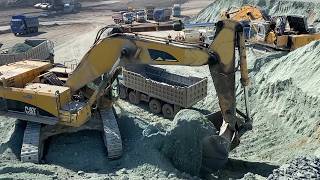

Extraction in Action: Caterpillar 385C Loading Overburden at a Busy Mine | 4K Video - Ektor Epe
▶
Extraction in Action: Caterpillar 385C Loading Overburden at a Busy Mine | 4K Video - Ektor Epe
📺 Mega Machines Channel

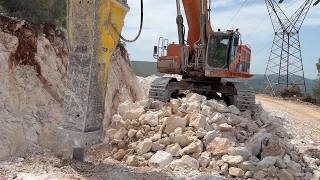

Caterpillar 385C with Epiroc HB 10000 Lowers Road Slope by 1.8 Meters | 4K - Sotiriadis Constr.
▶
Caterpillar 385C with Epiroc HB 10000 Lowers Road Slope by 1.8 Meters | 4K - Sotiriadis Constr.
📺 Mega Machines Channel

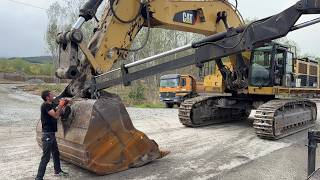

From Mine to Jobsite: Transporting A Cat 385C Excavator With MAN TGA 540 - Sotiriadis/Labrianidis 4k
▶
From Mine to Jobsite: Transporting A Cat 385C Excavator With MAN TGA 540 - Sotiriadis/Labrianidis 4k
📺 Mega Machines Channel

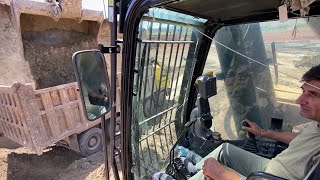

Caterpillar 385C Excavator Loading Overburden On Mercedes & MAN Trucks - Ektor Epe
▶
