Liebherr · Hydraulic Excavator

Liebherr R954C Specs

/5 · ratings Be the first to rate ✓ Thanks!

Liebherr

Overview

The Liebherr R954C is a hydraulic excavator listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 326 hp, operating weight of 108,470 lb, working depth of 23.30 ft, reach of 35.77 ft, capacity of 3.1 yd³ and travel speed of 3.0 mph. This model can be reviewed for excavation, trenching, loading, site preparation, and fleet comparison workflows. Use the full specifications table to compare the Liebherr R954C against similar hydraulic excavator models by power, weight, capacity, dimensions, speed, and other technical values.

Key Specifications

Operating Weight
108,470
lb

Gross Power
326
hp

Max Digging Depth
23.30
ft

Reference Bucket Capacity
3.10
yd3

Full Specifications

35 specs

Dimensions

6.7m boom / 2.35m stick 2

6.7m boom / 2.9m stick 3

6.7m boom / 3.8m stick 4

7.6m boom / 2.35m stick 5

7.6m boom / 2.9m stick 6

Boom/Stick Option (Hex) 1 6.7m boom / 2.35m stick

Ground Clearance 1.79 ft / 0.55 m

Length of Track on Ground 14.44 ft / 4.40 m

Max Cutting Height 34.45 ft / 10.50 m

Max Digging Depth 23.30 ft / 7.10 m

Max Loading Height 23.30 ft / 7.10 m

Max Reach Along Ground 35.77 ft / 10.90 m

Shipping Height Of Unit 12.47 ft / 3.80 m

Shipping Length Of Unit 39.54 ft / 12.05 m

Tail Swing Radius 12.31 ft / 3.75 m

Width To Outside Of Tracks 11.57 ft / 3.53 m

Engine

Alternator Supplied Amperage 80 A

Displacement 641 cu in / 10.5 L

Engine Make 2245

Engine Model D 936 L

Fuel Capacity 185 gal / 700.3 L

Gross Power 326 hp / 243.1 kW

Hydraulic Pump Flow Capacity 92.50 gal/min / 350.2 L/min

Hydraulic System Fluid Capacity 208.70 gal / 790.0 L

Maximum Bucket Capacity 4 yd³ / 3.06 m³

Minimum Bucket Capacity 2.70 yd³ / 2.06 m³

Number of Cylinders 6

Operating Voltage 24 V

Operating Weight 108,470 lb / 49,201 kg

Power Measured @ 1,800 rpm

Reference Bucket Capacity 3.10 yd³ / 2.37 m³

Swing Speed 5.60 deg

Undercarriage

Drawbar Pull 96,443 lb / 43,746 kg

Max Travel Speed 2.99 mph / 4.8 km/h

Shoe Size 19.69 in / 500 mm

Videos 2

▶

Relocating The Caterpillar D9T Dozer, Liebherr 974 & Liebherr 954 - Sotiriadis/Labrianidis 4k

📺 Mega Machines Channel

▶

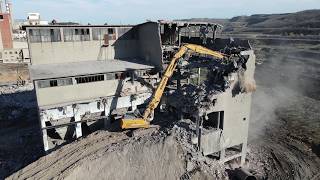

Liebherr 954 Long Reach Excavator Demolishing 50m Industrial Building - Sotiriadis/Labrianidis

📺 Mega Machines Channel

Related Machines

Related Guides & Articles

Apr 16, 2026

Hydraulic Excavator Boom Types: Solving Site-Specific Challenges

Read article →

Apr 18, 2026

Hydraulic Excavator Fuel Consumption: Operator Insights

Read article →

Apr 26, 2026

Mining Shovel vs Hydraulic Excavator: Spec-Driven Comparison

Read article →

Frequently Asked Questions

What is the operating weight of the Liebherr R954C? +

The Liebherr R954C has an operating weight of 108,470 lb (49,201 kg). This places it in a class suited for hydraulic excavator applications where ground pressure and transport weight are key considerations.

How powerful is the Liebherr R954C engine? +

The Liebherr R954C produces 326 hp (243.1 kW) of engine power. This output is typical for its weight class and designed to handle demanding Hydraulic Excavator work cycles efficiently.

What is the maximum digging depth of the Liebherr R954C? +

The Liebherr R954C has a maximum digging depth of 23.30 ft (7.10 m). This makes it suitable for trenching, foundation work, and other excavation tasks requiring vertical reach.

What is the maximum reach of the Liebherr R954C? +

The Liebherr R954C has a maximum reach along the ground of 35.77 ft (10.90 m), allowing it to work effectively across wide areas without repositioning.

What is the travel speed of the Liebherr R954C? +

The Liebherr R954C has a maximum travel speed of 3.0 mph (4.8 km/h), enabling efficient movement between work areas on the job site.

How does the Liebherr R954C compare to similar Hydraulic Excavator models? +

You can compare the Liebherr R954C side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
