Liebherr · Hydraulic Excavator

Liebherr R964B Specs

/5 · ratings Be the first to rate ✓ Thanks!

Liebherr

Overview

The Liebherr R964B is a hydraulic excavator listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 383 hp, operating weight of 136,885 lb, working depth of 23.46 ft, reach of 37.73 ft, capacity of 4.6 yd³ and travel speed of 2.7 mph. This model can be reviewed for excavation, trenching, loading, site preparation, and fleet comparison workflows. Use the full specifications table to compare the Liebherr R964B against similar hydraulic excavator models by power, weight, capacity, dimensions, speed, and other technical values.

Key Specifications

Operating Weight
136,885.10
lb

Net Power
383
hp

Max Digging Depth
23.46
ft

Reference Bucket Capacity
4.60
yd3

Full Specifications

37 specs

Dimensions

Boom/Stick Option (Hex) 1 Gooseneck Boom 7000mm / Stick 2600mm

Ground Clearance 1.99 ft / 0.61 m

Height to Top of Cab 11.95 ft / 3.64 m

Length of Track on Ground 14.05 ft / 4.28 m

Max Cutting Height 38.23 ft / 11.65 m

Max Digging Depth 23.46 ft / 7.15 m

Max Loading Height 25.76 ft / 7.85 m

Max Reach Along Ground 37.73 ft / 11.50 m

Removal Counterweight Clearance 4 lb / 2 kg

Shipping Height Of Unit 12.64 ft / 3.85 m

Shipping Length Of Unit 41.34 in / 1,050 mm

Tail Swing Radius 13.64 ft / 4.16 m

Width To Outside Of Tracks 12.77 ft / 3.89 m

Engine

Alternator Supplied Amperage 80 A

Displacement 786 cu in / 12.9 L

Engine Make 2245

Engine Model D 9406 TI-E

Fuel Capacity 277.40 gal / 1,050.1 L

Hydraulic Pump Flow Capacity 216.70 gal/min / 820.3 L/min

Hydraulic System Fluid Capacity 224.60 gal / 850.2 L

Hydraulic System Relief Valve Pressure 5,076 psi / 350.0 bar

Maximum Bucket Capacity 6.90 yd³ / 5.28 m³

Minimum Bucket Capacity 3.10 yd³ / 2.37 m³

Net Power 383 hp / 285.6 kW

Number of Cylinders 6

Operating Voltage 28 V

Operating Weight 136,885 lb / 62,090 kg

Reference Bucket Capacity 4.60 yd³ / 3.52 m³

Swing Speed 5.50 deg

Swing Torque 162.30 deg

Undercarriage

Drawbar Pull 118,250 lb / 53,637 kg

Ground Pressure 19 psi / 1.3 bar

Max Travel Speed 2.68 mph / 4.3 km/h

Number Of Carrier Rollers Per Side 2

Number of Track Rollers per Side 8

Shoe Size 19.69 in / 500 mm

Track Gauge 10.50 ft / 3.20 m

Videos 3

▶

Transporting The Liebherr 964 & Cat 336 Excavators - Fasoulas Heavy Transports 4k

📺 Mega Machines Channel

▶

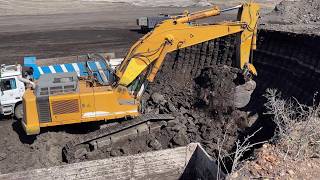

Liebherr 964 Excavator Loading Overburden At Busy Coal Mine

📺 Mega Machines Channel

▶

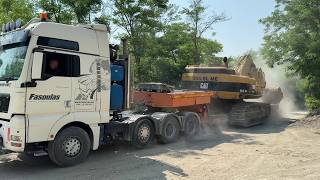

Triple Excavator Transport: Caterpillar 365B, 324E, And Liebherr 964 - Fasoulas Heavy Transports 4k

📺 Mega Machines Channel

Related Machines

Related Guides & Articles

Apr 08, 2026

Hitachi ZX490 vs Liebherr 964: Choosing the Best Excavator

Read article →

Apr 16, 2026

Hydraulic Excavator Boom Types: Solving Site-Specific Challenges

Read article →

Apr 18, 2026

Hydraulic Excavator Fuel Consumption: Operator Insights

Read article →

Frequently Asked Questions

What is the operating weight of the Liebherr R964B? +

The Liebherr R964B has an operating weight of 136,885 lb (62,090 kg). This places it in a class suited for hydraulic excavator applications where ground pressure and transport weight are key considerations.

How powerful is the Liebherr R964B engine? +

The Liebherr R964B produces 383 hp (285.6 kW) of engine power. This output is typical for its weight class and designed to handle demanding Hydraulic Excavator work cycles efficiently.

What is the maximum digging depth of the Liebherr R964B? +

The Liebherr R964B has a maximum digging depth of 23.46 ft (7.15 m). This makes it suitable for trenching, foundation work, and other excavation tasks requiring vertical reach.

What is the maximum reach of the Liebherr R964B? +

The Liebherr R964B has a maximum reach along the ground of 37.73 ft (11.50 m), allowing it to work effectively across wide areas without repositioning.

What is the travel speed of the Liebherr R964B? +

The Liebherr R964B has a maximum travel speed of 2.7 mph (4.3 km/h), enabling efficient movement between work areas on the job site.

How does the Liebherr R964B compare to similar Hydraulic Excavator models? +

You can compare the Liebherr R964B side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
