Liebherr · Hydraulic Excavator

Liebherr R984C Specs

/5 · ratings Be the first to rate ✓ Thanks!

Liebherr

Overview

The Liebherr R984C is a hydraulic excavator listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 710 hp, operating weight of 261,468 lb, working depth of 26.09 ft, reach of 44.95 ft, capacity of 9.2 yd³ and travel speed of 1.8 mph. This model can be reviewed for excavation, trenching, loading, site preparation, and fleet comparison workflows. Use the full specifications table to compare the Liebherr R984C against similar hydraulic excavator models by power, weight, capacity, dimensions, speed, and other technical values.

Key Specifications

Operating Weight
261,468.30
lb

Net Power
710
hp

Max Digging Depth
26.09
ft

Reference Bucket Capacity
9.20
yd3

Full Specifications

43 specs

Dimensions

Boom 11000mm / Stick 4500mm 6

Boom 7800mm / Stick 3400mm 2

Boom 7800mm / Stick 4500mm 3

Boom 9200mm / Stick 3400mm 4

Boom 9200mm / Stick 4500mm 5

Boom/Stick Option (Hex) 1 Boom 7800mm / Stick 3400mm

Ground Clearance 2.83 ft / 0.86 m

Height to Top of Cab 14.62 ft / 4.46 m

Length of Track on Ground 16.59 ft / 5.06 m

Max Cutting Height 45.94 in / 1,167 mm

Max Digging Depth 26.09 ft / 7.95 m

Max Loading Height 30.19 ft / 9.20 m

Max Reach Along Ground 44.95 ft / 13.70 m

Removal Counterweight Clearance 6 lb / 3 kg

Shipping Height Of Unit 18.54 ft / 5.65 m

Shipping Length Of Unit 48.73 in / 1,238 mm

Tail Swing Radius 15.39 ft / 4.69 m

Width To Outside Of Tracks 15.85 ft / 4.83 m

Engine

Alternator Supplied Amperage 100 A

Displacement 1,153 cu in / 18.9 L

Engine Make 2347

Engine Model QSK-19 C 750

Fuel Capacity 418.80 gal / 1,585.3 L

Hydraulic Pump Flow Capacity 124.70 gal/min / 472.0 L/min

Hydraulic System Fluid Capacity 438.60 gal / 1,660.3 L

Hydraulic System Relief Valve Pressure 4,931 psi / 340.0 bar

Maximum Bucket Capacity 13.10 yd³ / 10.02 m³

Minimum Bucket Capacity 6.20 yd³ / 4.74 m³

Net Power 710 hp / 529.4 kW

Number of Cylinders 6

Operating Voltage 24 V

Operating Weight 261,468 lb / 118,600 kg

Power Measured @ 2,100 rpm

Reference Bucket Capacity 9.20 yd³ / 7.03 m³

Swing Speed 5.20 deg

Swing Torque 287,649.30 deg

Undercarriage

Drawbar Pull 196,033 lb / 88,919 kg

Ground Pressure 25 psi / 1.7 bar

Max Travel Speed 1.81 mph / 2.9 km/h

Number Of Carrier Rollers Per Side 2

Number of Track Rollers per Side 9

Shoe Size 23.63 in / 600 mm

Track Gauge 13.13 ft / 4.00 m

Videos 17

Transporting the 125-Ton Liebherr 984 Excavator Across a Mining Site

▶

12:32

Transporting the 125-Ton Liebherr 984 Excavator Across a Mining Site

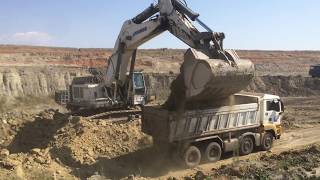

Liebherr 984 Excavator Efficiently Loads Trucks in Two Passes

▶

04:02

Liebherr 984 Excavator Efficiently Loads Trucks in Two Passes

▶

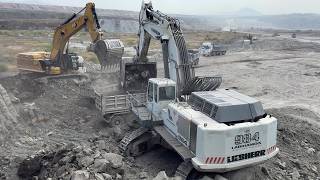

Liebherr 984 & Cat 395 Loading Overburden Onto 4 Axle Trucks - Sotiriadis/Labrianidis Mining 4k

📺 Mega Machines Channel

▶

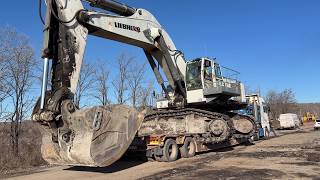

Loading & Transporting On Site The Huge Liebherr 984 Excavator - Fasoulas Heavy Transports Team - 4k

📺 Mega Machines Channel

▶

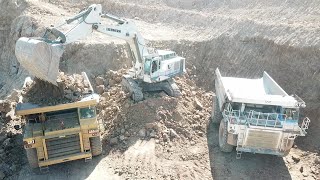

Huge Liebherr 984 Excavator Loading Caterpillar 777C-D Dumpers - Sotiriadis/Labrianidis - Drone View

📺 Mega Machines Channel

▶

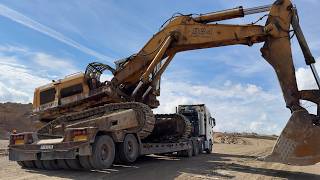

Relocating On Site The Huge Old Liebherr 984 Hydraulic Excavator - Fasoulas Heavy Transports - 4k

📺 Mega Machines Channel

▶

Liebherr 984 Excavator Loading Overburden On 4 Axle Trucks - Labrianidis Mining Works - 4k

📺 Mega Machines Channel

▶

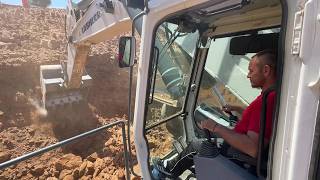

Liebherr 984 Excavator Loading Cat 777C & D Dumpers - Operator View - Sotiriadis/Labrianidis

📺 Mega Machines Channel

▶

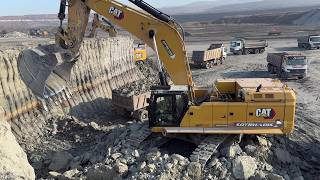

2-Hour 4K Mega Machines Movie: CAT 395, Liebherr 984, 992D, Excavators & Dozers at Work - Movie

📺 Mega Machines Channel

▶

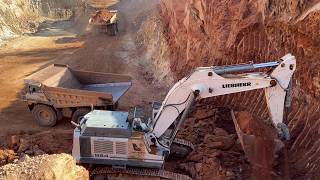

Two Liebherr 984 Excavators & Caterpillar 777C-D Dumpers Move Overburden - Sotiriadis/Labrianidis

📺 Mega Machines Channel

▶

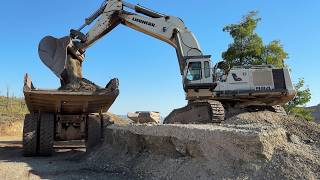

Liebherr 984 Excavator Loading Caterpillar 777C - D Dumpers - Sotiriadis/Labrianidis 4K

📺 Mega Machines Channel

▶

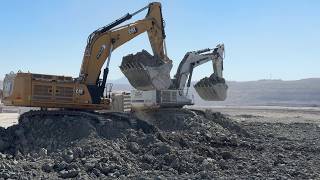

Excavators – Liebherr 984, Caterpillar 395,Cat 385C & Cat 365C in Action - Sotiriadis/Labrianidis 4k

📺 Mega Machines Channel

▶

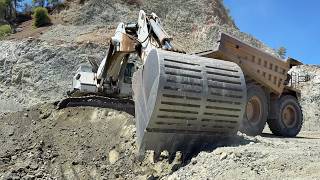

Liebherr 984 Excavator Loading CAT 777 Dumpers At A Magnesite Quarry - Sotiriadis/Labrianidis 4K

📺 Mega Machines Channel

▶

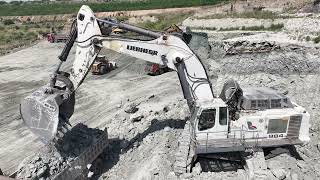

Massive Excavators In Action: Liebherr 984, CAT 385C & Volvo EC700C - Sotiriadis/Labrianidis 4k

📺 Mega Machines Channel

▶

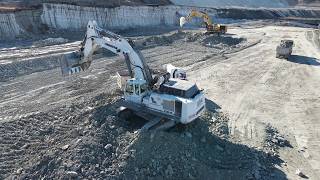

Caterpillar 6015B & Liebherr 984 Excavators Working On The Depths Of A Mine - Sotiriadis/Labrianidis
