Overview
The Terex RH120E is a shovel listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 1,400 hp, capacity of 20.2 yd³, travel speed of 1.7 mph, fuel capacity of 1,416.0 gal and hydraulic capacity of 660.5 gal. This model can be reviewed for equipment comparison, jobsite planning, fleet research, and specification-based machine selection. Use the full specifications table to compare the Terex RH120E against similar shovel models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Net Power
1,400
hp
Gross Power
1,568
hp
Reference Bucket Capacity
20.20
yd3
Full Specifications
39 specs
Dimensions
Height Of Tracks
6.37 ft / 1.94 m
Height to Top of Cab
24.94 ft / 7.60 m
Length Of Tracks
25.07 ft / 7.64 m
Length of Track on Ground
19.69 ft / 6.00 m
Max Cutting Height
47.25 in / 1,200 mm
Max Dig Depth
20.02 ft / 6.10 m
Max Dig Reach
44.95 ft / 13.70 m
Max Dump Height
35.11 ft / 10.70 m
Tail Swing Radius
20.71 ft / 6.31 m
Upper Structure Ground Clearance
7.06 ft / 2.15 m
Width Over Tracks
19.03 ft / 5.80 m
Engine
Alternator Supplied Amperage
300 A
Displacement
1,105 cu in / 18.1 L
Engine Make
2236
Engine Model
2x C18
Fuel Capacity
1,416 gal / 5,360.1 L
Gross Power
1,568 hp / 1,169.3 kW
Hydraulic System Fluid Capacity
660.50 gal / 2,500.3 L
Loading Shovel Ground Pressure
25 psi / 1.7 bar
Loading Shovel Operating Weight
526,905 lb / 239,000 kg
Maximum Bucket Capacity
22.30 yd³ / 17.05 m³
Minimum Bucket Capacity
17.70 yd³ / 13.53 m³
Net Power
1,400 hp / 1,044.0 kW
Number of Cylinders
6
Operating Voltage
24 V
Power Measured @
1,800 rpm
Reference Bucket Capacity
20.20 yd³ / 15.44 m³
Swing Speed
4.70 deg
Undercarriage
Backhoe Ground Pressure - Shoe 1
31 psi / 2.1 bar
Backhoe Operating Weight - Shoe 1
632,947 lb / 287,100 kg
Backhoe Shoe Width 1
39.38 ft / 12.00 m
Loading Shovel Ground Pressure
31 psi / 2.1 bar
Loading Shovel Operating Weight
626,333 lb / 284,100 kg
Loading Shovel Shoe Width
39.38 ft / 12.00 m
Max Travel Speed
1.68 mph / 2.7 km/h
Number Of Lower Rollers
7
Number Of Track Shoes Per Side
47
Number Of Upper Rollers
2
Track Gauge
15.75 ft / 4.80 m

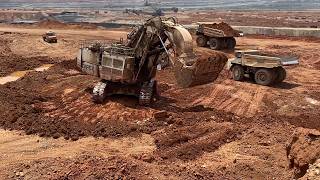

Videos 1
Related Machines
Related Guides & Articles
Frequently Asked Questions
How powerful is the Terex RH120E engine? +
The Terex RH120E produces 1,568 hp (1,169.3 kW) of engine power. This output is typical for its weight class and designed to handle demanding Shovel work cycles efficiently.
What is the travel speed of the Terex RH120E? +
The Terex RH120E has a maximum travel speed of 1.7 mph (2.7 km/h), enabling efficient movement between work areas on the job site.
How does the Terex RH120E compare to similar Shovel models? +
You can compare the Terex RH120E side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
