Overview
The Terex RH170B is a shovel listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 2,032 hp, travel speed of 1.6 mph, fuel capacity of 2,060.6 gal and hydraulic capacity of 792.6 gal. This model can be reviewed for equipment comparison, jobsite planning, fleet research, and specification-based machine selection. Use the full specifications table to compare the Terex RH170B against similar shovel models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Net Power
2,032
hp
Gross Power
2,032
hp
Full Specifications
32 specs
Dimensions
Ground Clearance
3.22 ft / 0.98 m
Height Of Tracks
7.22 ft / 2.20 m
Height to Top of Cab
25.83 ft / 7.87 m
Length Of Tracks
26.48 ft / 8.07 m
Length of Track on Ground
20.35 ft / 6.20 m
Max Cutting Height
47.25 in / 1,200 mm
Max Dig Depth
8.54 ft / 2.60 m
Max Dig Reach
50.53 ft / 15.40 m
Max Dump Height
35.77 ft / 10.90 m
Tail Swing Radius
22.25 ft / 6.78 m
Upper Structure Ground Clearance
8.40 ft / 2.56 m
Width Over Tracks
21.66 ft / 6.60 m
Engine
Alternator Supplied Amperage
300 A
Displacement
1,959 cu in / 32.1 L
Engine Make
2236
Engine Model
2x C32
Fuel Capacity
2,060.60 gal / 7,800.2 L
Gross Power
2,032 hp / 1,515.3 kW
Hydraulic System Fluid Capacity
792.60 gal / 3,000.3 L
Net Power
2,032 hp / 1,515.3 kW
Number of Cylinders
12
Operating Voltage
24 V
Power Measured @
1,750 rpm
Swing Speed
4.70 deg
Undercarriage
Loading Shovel Ground Pressure
34 psi / 2.4 bar
Loading Shovel Operating Weight
868,180 lb / 393,800 kg
Loading Shovel Shoe Width
47.25 in / 1,200 mm
Max Travel Speed
1.62 mph / 2.6 km/h
Number Of Lower Rollers
7
Number Of Track Shoes Per Side
42
Number Of Upper Rollers
2
Track Gauge
17.72 ft / 5.40 m

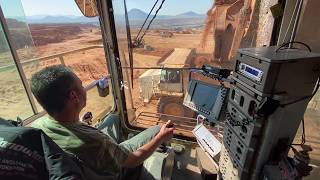

Videos 2
Related Machines
Frequently Asked Questions
How powerful is the Terex RH170B engine? +
The Terex RH170B produces 2,032 hp (1,515.3 kW) of engine power. This output is typical for its weight class and designed to handle demanding Shovel work cycles efficiently.
What is the travel speed of the Terex RH170B? +
The Terex RH170B has a maximum travel speed of 1.6 mph (2.6 km/h), enabling efficient movement between work areas on the job site.
How does the Terex RH170B compare to similar Shovel models? +
You can compare the Terex RH170B side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
