Overview
The Terex RH30FHD is a shovel listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 489 hp, capacity of 5.7 yd³, travel speed of 2.9 mph, fuel capacity of 277.4 gal and hydraulic capacity of 369.9 gal. This model can be reviewed for equipment comparison, jobsite planning, fleet research, and specification-based machine selection. Use the full specifications table to compare the Terex RH30FHD against similar shovel models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Net Power
489
hp
Gross Power
509
hp
Reference Bucket Capacity
5.70
yd3
Full Specifications
44 specs
Dimensions
Boom 6850mm Stick 2600mm
2
Boom 7250mm Stick2900mm
3
Ground Clearance
25.20 ft / 7.68 m
Height To Top Of Boom - Shovel
17.07 ft / 5.20 m
Height to Top of Cab
14.77 ft / 4.50 m
Length Of Tracks
18.80 ft / 5.73 m
Length of Track on Ground
14.80 ft / 4.51 m
Max Cutting Height
32.49 ft / 9.90 m
Max Dig Depth
21.66 ft / 6.60 m
Max Dig Reach
31.50 ft / 9.60 m
Max Dump Height
22.31 ft / 6.80 m
Max Reach On Ground
36.42 ft / 11.10 m
Tail Swing Radius
13.52 ft / 4.12 m
Upper Structure Ground Clearance
4.99 ft / 1.52 m
Width Over Tracks
14.18 ft / 4.32 m
Engine
Alternator Supplied Amperage
175 A
Engine Make
2347
Engine Model
QSX 15
Fuel Capacity
277.40 gal / 1,050.1 L
Gross Power
509 hp / 379.6 kW
Hydraulic System Fluid Capacity
369.90 gal / 1,400.2 L
Maximum Bucket Capacity
9.70 yd³ / 7.42 m³
Minimum Bucket Capacity
4.60 yd³ / 3.52 m³
Net Power
489 hp / 364.6 kW
Operating Voltage
24 V
Power Measured @
1,800 rpm
Reference Bucket Capacity
5.70 yd³ / 4.36 m³
Swing Speed
5.80 deg
Undercarriage
Backhoe Ground Pressure - Shoe 1
20 psi / 1.4 bar
Backhoe Ground Pressure - Shoe 2
17 psi / 1.1 bar
Backhoe Ground Pressure - Shoe 3
14 psi / 1.0 bar
Backhoe Operating Weight - Shoe 1
186,732 lb / 84,700 kg
Backhoe Operating Weight - Shoe 2
188,936 lb / 85,700 kg
Backhoe Operating Weight - Shoe 3
191,141 lb / 86,700 kg
Backhoe Shoe Width 1
23.63 ft / 7.20 m
Backhoe Shoe Width 2
29.53 ft / 9.00 m
Backhoe Shoe Width 3
35.44 ft / 10.80 m
Loading Shovel Ground Pressure
20 psi / 1.4 bar
Loading Shovel Operating Weight
188,275 lb / 85,400 kg
Loading Shovel Shoe Width
23.63 ft / 7.20 m
Max Travel Speed
2.93 mph / 4.7 km/h
Number Of Lower Rollers
8
Number Of Upper Rollers
2
Track Gauge
11.49 ft / 3.50 m

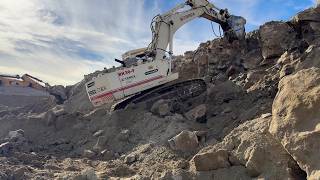

Videos 1
Related Machines
Related Guides & Articles
Frequently Asked Questions
How powerful is the Terex RH30FHD engine? +
The Terex RH30FHD produces 509 hp (379.6 kW) of engine power. This output is typical for its weight class and designed to handle demanding Shovel work cycles efficiently.
What is the travel speed of the Terex RH30FHD? +
The Terex RH30FHD has a maximum travel speed of 2.9 mph (4.7 km/h), enabling efficient movement between work areas on the job site.
How does the Terex RH30FHD compare to similar Shovel models? +
You can compare the Terex RH30FHD side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
