Overview
The Terex TR60 is a rock truck listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 645 hp, travel speed of 35.8 mph, fuel capacity of 160.1 gal and hydraulic capacity of 68.2 gal. This model can be reviewed for equipment comparison, jobsite planning, fleet research, and specification-based machine selection. Use the full specifications table to compare the Terex TR60 against similar rock truck models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Net Power
645
hp
Gross Power
650
hp
Rated Payload
120,000
lb
Overall Length
29.86
ft
Full Specifications
41 specs
Dimensions
Dump Angle
58 deg
Dump Ground Clearance
1.97 ft / 0.60 m
Dump Height
26.25 ft / 8.00 m
Ground Clearance
2.30 ft / 0.70 m
Load Capacity - Heaped
46 lb / 21 kg
Load Capacity - Struck
34 lb / 15 kg
Overall Height
14.44 ft / 4.40 m
Overall Length
29.86 ft / 9.10 m
Overall Width
16.41 ft / 5.00 m
Rated Payload
120,000 lb / 54,431 kg
Wheelbase
13.46 ft / 4.10 m
Engine
Alternator Supplied Amperage
70 A
Cooling System Fluid Capacity
45 gal / 170.3 L
Diff And Final Drive Fluid Capacity
13.80 gal / 52.2 L
Displacement
1,150 cu in / 18.8 L
Empty Weight
90,940 lb / 41,250 kg
Engine Make
2347
Engine Model
QSK19-C650
Engine Oil Capacity
17.50 gal / 66.2 L
Fuel Capacity
160.10 gal / 606.0 L
Gross Power
650 hp / 484.7 kW
Hydraulic System Fluid Capacity
68.20 gal / 258.2 L
Load Capacity - Heaped
44.70 yd³ / 34.18 m³
Loaded Weight
210,940 lb / 95,681 kg
Max Speed
35.80 mph / 57.6 km/h
Max Torque
2,275 lb-ft / 3,084 Nm
Net Power
645 hp / 481.0 kW
Number Of Gears - Forward
6
Number Of Gears - Reverse
2
Number of Cylinders
6
Operating Voltage
24 V
Power Measured @
2,100 rpm
Steering System Fluid Capacity
19.10 gal / 72.3 L
Torque Measured @
1,300 rpm
Transmission Type
Allison M6610AR
Weight Distribution Front - Empty
48 lb / 22 kg
Weight Distribution Front - Loaded
34 lb / 15 kg
Weight Distribution Rear - Empty
52 lb / 24 kg
Weight Distribution Rear - Loaded
66 lb / 30 kg
Hydraulics
Lower Time
4 sec
Raise Time
16 sec

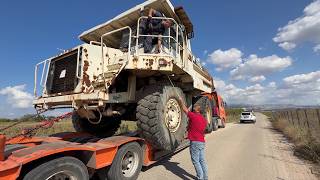

Videos 1
