Overview
The Caterpillar 390F L is a hydraulic excavator listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 524 hp, operating weight of 190,204 lb, travel speed of 2.8 mph, fuel capacity of 328,327.6 gal and hydraulic capacity of 263.0 gal. This model can be reviewed for excavation, trenching, loading, site preparation, and fleet comparison workflows. Use the full specifications table to compare the Caterpillar 390F L against similar hydraulic excavator models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Operating Weight
190,204
lb
Net Power
523
hp
Full Specifications
71 specs
Dimensions
Ground Clearance
2.96 ft / 0.90 m
Height to Top of Cab
12.57 ft / 3.83 m
Length of Track on Ground
20.86 ft / 6.36 m
Number Of Carrier Rollers - Each Side
3
Removal Counterweight Clearance
5 lb / 2 kg
Tail Swing Radius
15.42 ft / 4.70 m
Width To Outside Of Tracks
9.03 ft / 2.75 m
Engine
Bore
5.70 in / 145 mm
Cooling System Fluid Capacity
20 gal / 75.7 L
Def Tank
13 gal / 49.2 L
Displacement
1,105 cu in / 18.1 L
Engine Make
2236
Engine Model
C18 ACERT
Engine Oil Capacity
16 gal / 60.6 L
Engine Rpm - Operation
1,700
Engine Rpm - Travel
1,900
Fuel Capacity
328,327.60 gal / 1,242,855.2 L
Fuel Tank Capacity
328 gal / 1,241.6 L
Hydraulic Pump Flow Capacity
266 gal/min / 1,006.9 L/min
Hydraulic System Fluid Capacity
263 gal / 995.6 L
Hydraulic Tank
215 gal / 813.9 L
Maximum Operating Weight
190,204 lb / 86,275 kg
Minimum Operating Weight
156,461 lb / 70,970 kg
Net Flywheel Power
524 hp / 390.7 kW
Net Power
524 hp / 390.7 kW
Net Power - Sae J1349
524 hp / 390.7 kW
Operating Weight
190,204 lb / 86,275 kg
Stroke
7.20 in / 183 mm
Swing Drive Fluid Capacity
5 gal / 18.9 L
Swing Speed
6.20 deg
Swing Torque
191,766 deg
Hydraulics
Boom Cylinder - Bore
8.30 in / 211 mm
Boom Cylinder - Stroke
77 in / 1,956 mm
Engine Oil
16 gal / 60.6 L
Hb2 Family Bucket Cylinder - Bore
7.90 in / 201 mm
Hb2 Family Bucket Cylinder - Stroke
57 in / 1,448 mm
Jc Family Bucket Cylinder - Bore
8.70 in / 221 mm
Jc Family Bucket Cylinder - Stroke
62 in / 1,575 mm
Main System - Maximum Flow ( 2 Pumps) - Implement
133 gal/min / 503.5 L/min
Main System - Maximum Flow ( 2 Pumps) - Travel
141 gal/min / 533.7 L/min
Main System - Maximum Flow - Total - Implement
266 gal/min / 1,006.9 L/min
Main System - Maximum Flow - Total - Travel
281 gal/min / 1,063.7 L/min
Maximum Pressure - Equipment - Normal
5,076 psi / 350.0 bar
Maximum Pressure - Swing
3,770 psi / 259.9 bar
Maximum Pressure - Travel
5,076 psi / 350.0 bar
Pilot System - Maximum Flow
17.70 gal/min / 67.0 L/min
Stick Cylinder - Bore
8.70 in / 221 mm
Stick Cylinder - Stroke
89 in / 2,261 mm
Other
Brakes
SAE J1026 APR90
Cab/Fogs
1,356
Cooling System
20 gal / 75.7 L
Final Drive - Each
5.5
Hydraulic System - Including Tank
263 gal / 995.6 L
Iso 6395 - Exterior
109
Iso 6396 - Inside Cab
74
Maximum Drawbar Pull
132,637 lb / 60,163 kg
Maximum Drawbar Pull - Long Undercarriage
132,637 lb / 60,163 kg
Maximum Travel Speed
2.80 mph / 4.5 km/h
Net Power
523 hp / 390.0 kW
Number Of Shoes - Each Side - Long Undercarriage
51
Number Of Track Rollers - Each Side - Long Undercarriage
9
Optional For Long Undercarriage (1)
26
Optional For Long Undercarriage (2)
30
Sound Performance
6,395
Standard With Long Undercarriage
35
Swing Drive - Each
5 deg
Undercarriage
Drawbar Pull
132,637 lb / 60,163 kg
Max Travel Speed
2.80 mph / 4.5 km/h
Number Of Carrier Rollers Per Side
3
Number Of Shoes Per Side
51
Number of Track Rollers per Side
9

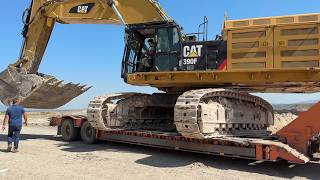

Videos 1
Related Machines
Frequently Asked Questions
What is the operating weight of the Caterpillar 390F L? +
The Caterpillar 390F L has an operating weight of 190,204 lb (86,275 kg). This places it in a class suited for hydraulic excavator applications where ground pressure and transport weight are key considerations.
How powerful is the Caterpillar 390F L engine? +
The Caterpillar 390F L produces 524 hp (390.7 kW) of engine power. This output is typical for its weight class and designed to handle demanding Hydraulic Excavator work cycles efficiently.
What is the travel speed of the Caterpillar 390F L? +
The Caterpillar 390F L has a maximum travel speed of 2.8 mph (4.5 km/h), enabling efficient movement between work areas on the job site.
How does the Caterpillar 390F L compare to similar Hydraulic Excavator models? +
You can compare the Caterpillar 390F L side by side with any other model using the Heavy Equipment Hub compare tool. Key comparison points include engine power, operating weight, digging depth, hydraulic flow, and overall dimensions.
