Overview
The Caterpillar D9T WH is a crawler tractor listed in the Heavy Equipment Hub equipment database with structured specifications for comparison, research, and machine selection. Key specification points include engine power of 410 hp, operating weight of 109,180 lb and fuel capacity of 235.0 gal. This model can be reviewed for pulling power, implement matching, agricultural operations, and equipment comparison. Use the full specifications table to compare the Caterpillar D9T WH against similar crawler tractor models by power, weight, capacity, dimensions, speed, and other technical values.
Key Specifications
Operating Weight
109,180
lb
Net Power
410
hp
Gross Power
464
hp
Full Specifications
101 specs
Dimensions
Engine Emission Standards
Tier 4 Final/Stage IV
Engine Model
C18 ACERT
Fuel Tank Refill Capacity
217 gal / 821.4 L
General Dimensions - Ground Clearance
1.90 ft / 0.58 m
General Dimensions - Height - Stripped Top
12.10 ft / 3.69 m
General Dimensions - Height - To Top Of Rops Cab
12.50 ft / 3.81 m
General Dimensions - Height - To Top Of Rops Canopy
13.10 ft / 3.99 m
General Dimensions - Overall Length - Su Landfill Blade
22.50 ft / 6.86 m
General Dimensions - Overall Length - Without Blade And Without Drawbar
16.11 ft / 4.91 m
General Dimensions - Width - Over Trunnion
10.80 ft / 3.29 m
General Dimensions - Width - Without Trunnion - Standard Shoe
9.40 ft / 2.87 m
Ground Clearance
1.96 ft / 0.60 m
Ground Contact Area - With Standard Shoes
6,569
Height - Rops Cab
12.52 ft / 3.82 m
Height - Rops/Canopy
13.12 ft / 4.00 m
Height - Stripped Top
9.84 ft / 3.00 m
Height to Top of Cab
12.52 ft / 3.82 m
Length - Track On Ground
11.40 ft / 3.47 m
Length of Track on Ground
11.38 ft / 3.47 m
Length w/ Blade
21.76 ft / 6.63 m
Length w/o Blade
16.11 ft / 4.91 m
Net Power - Sae J1349/Iso 9249
436 hp / 325.1 kW
Number Of Cylinders
6
Overall Length - Basic Tractor
16.11 ft / 4.91 m
Overall Length - With Blade
261 in / 6,629 mm
Rated Engine Rpm
1,800
Su - Blade Width
14.17 ft / 4.32 m
Su-Blade Capacity - With Trash Rack
37.60 in / 955 mm
Track Rollers - Each Side
8
Track Width
2 ft / 0.61 m
U-Blade Capacity With Trash Rack
43.80 in / 1,113 mm
U-Blade Width
15.25 ft / 4.65 m
Width - Over Trunnions
10.83 ft / 3.30 m
Width - Standard Track - Shoe
2 ft / 0.61 m
Width - With Blade
169.68 in / 4,310 mm
Width - Without Blade
130 in / 3,302 mm
Width - Without Trunnions - Standard Shoe
9.39 ft / 2.86 m
Width Over Tracks
9.39 ft / 2.86 m
Engine
1 Forward
2.40 mph / 3.9 km/h
1 Forward - Drawbar Pull (1000)
161 lb / 73 kg
1 Reverse
2.90 mph / 4.7 km/h
1.0 Forward
2.40
1.0 Reverse
2.90
2 Forward
4.20 mph / 6.8 km/h
2 Forward - Drawbar Pull (1000)
90 lb / 41 kg
2 Reverse
5.20 mph / 8.4 km/h
2.0 Forward
4.20
2.0 Reverse
5.20
3 Forward
7.30 mph / 11.7 km/h
3 Forward - Drawbar Pull (1000)
50 lb / 23 kg
3 Reverse
8.90 mph / 14.3 km/h
3.0 Forward
7.30
3.0 Reverse
8.90
Alternator Supplied Amperage
95 A
Bore
5.70 in / 145 mm
Def Tank Capacity
9.50 gal / 36.0 L
Displacement
1,105 cu in / 18.1 L
Engine Make
2236
Engine Model
C18 ACERT
Flywheel Power
410 hp / 305.7 kW
Fuel Capacity
235 gal / 889.6 L
Fuel Tank
235 gal / 889.6 L
Global Emissions
U.S. EPA Tier 4 Final/EU Stage IV; Tier 2/Stage II Equivalent; Tier 3/Stage IIIA Equivalent
Gross Power
464 hp / 346.0 kW
Height
9.30 ft / 2.83 m
Net Power
410 hp / 305.7 kW
Net Sae J1349/Iso 9249 - Tier 2/Stage Ii Equivalent (Serial Number Prefix: Twg)
410
Net Sae J1349/Iso 9249 - Tier 4 Final/Stage Iv (Serial Number Prefix: Rex)
436
Number of Cylinders
8
Operating Voltage
24 V
Operating Weight
109,180 lb / 49,523 kg
Power Measured @
1,800 rpm
Stroke
7.20 in / 183 mm
Transmission
1 Forward
Width
14.20 ft / 4.33 m
Hydraulics
Capacity
37.60 yd³ / 28.75 m³
Fops
SAE J/ISO3449 APR98 Level II, ISO 3449:1992 Level II
Rops
SAE J1040 MAY94, ISO 3471:1994
Tank Capacity
23.50 gal / 89.0 L
Other
**Including standard end bits.
2
*Available through Cat Work Tools.
2
Each Additional Shank
749.50
Lift Cylinder Relief Valve Setting
3,800 psi / 262.0 bar
Net Power
410 hp / 305.7 kW
Pump Output - Implement
60 gal/min / 227.1 L/min
Pump Output - Steering
102 gal/min / 386.1 L/min
Ripper - Lift - Relief Valve Setting
3,800 psi / 262.0 bar
Ripper - Pitch - Relief Valve Setting
3,800 psi / 262.0 bar
Serial Number Prefix: Rex
110,471
Serial Number Prefix: Twg
109,705
Steering System - Pressure
5,875 psi / 405.1 bar
Tilt Cylinder Flow - Head End Flow
50 gal/min / 189.3 L/min
Tilt Cylinder Flow - Rod End Flow
37 gal/min / 140.1 L/min
Tilt Cylinder Relief Valve Setting
2,800 psi / 193.1 bar
Weight***
11,499 lb / 5,216 kg
Width**
14.30 ft / 4.36 m
Undercarriage
Ground Contact Area
6,569 in² / 42,380.6 cm²
Number of Track Rollers per Side
8
Standard Shoe Size
24 in / 610 mm
Track Gauge
7.39 ft / 2.25 m
Track Rollers/Side
8

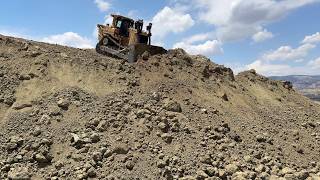

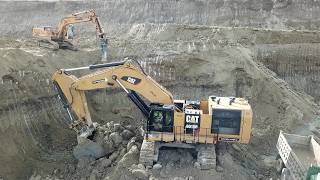

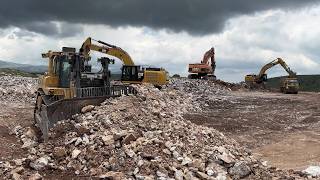

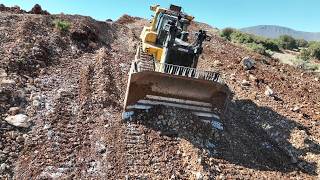

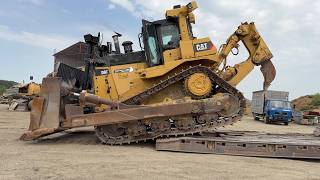

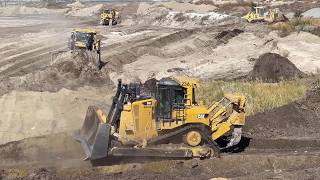

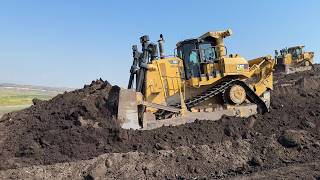

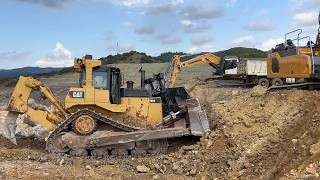

Videos 16
